Butterfly Valve – Key Features & Advantages
Compact & Lightweight
Ideal for large-diameter pipelines where weight reduction lowers installation costs.
Low Torque Operation
The disc rotates parallel or perpendicular to flow with minimal actuator effort, suitable for manual or automated systems.
Economical Choice
Lower material and maintenance costs compared to gate or globe valves of equivalent size.
Versatile Performance
Compatible with water, gases, and moderate-viscosity fluids across HVAC, wastewater, and chemical industries.
Central Disc & Shaft
The disc is fixed on a shaft spanning the pipe diameter, connected to an external actuator (lever, gear, or pneumatic/electric drive).
Bidirectional Sealing
Resilient seat materials (EPDM, Nitrile, PTFE) ensure leak-tight closure in both flow directions.
Space-Saving
Slim profile fits tight spaces without compromising flow capacity.
Butterfly Valve – Efficient Flow Control for Cost-Sensitive Applications
A butterfly valve is a quarter-turn valve that regulates flow using a rotating disc mounted on a central shaft. Similar to ball valves, they enable rapid shut-off with a 90° actuator rotation, but excel in cost-effectiveness and lightweight design, requiring minimal structural support.

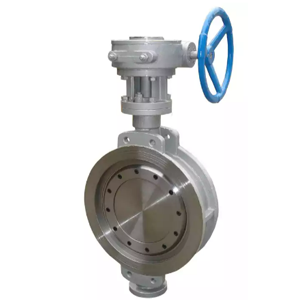

Wafer Triple Offset Butterfly Valve
Wafer Triple Offset Butterfly Valve
Specification
Structre type: Wafer type three eccenticity
Design standard: API609, MSS SP-68, EN 593
Flange dimension: ANSI B 16.5 etc
Face to Face: ANSI B 16.10, API 609
Pressure test: API 598-82
Size: 2″-120″
Application
Three eccentric configuration, hermetic capability reliably,which ensure disc never touch sealing seat when it start, solve the problem of hermetical seat burden unequally,prolong service life, and ensure reliable hermetic capability with advantage of high temperature resistant, wearable,antisepsis etc.

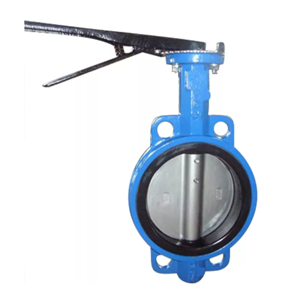

Lug Type Butterfly Valve
Design Standard: API 609; EN593
Face to Face: DIN3202-K1; EN558-1 20 Series; BS5155; MSS SP-67 ect.
Flange drilling: DIN2501 PN10/PN16; ANSI125/150; ASA125/150; AS2129 Table D/E; BS4504, JIS10K; BS10-D/E; etc.
Pressure test: API 598
Size: DN40-DN800
Application
This kind of butterfly valve is widely utilized in foodstuff,pharmacy,chemical industry etc.and industrial environmental protection, water treatment, high building,water supply and draian tubing line open or close or adjusting medium.

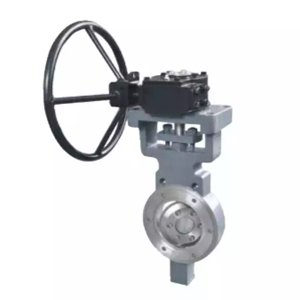

Lug Type Three Offset Butterfly Valve
Structre type: Lug Type Three Eccentric Butterfly valve
Design standard: API609, MSS SP-68, EN 593
Flange dimension: ANSI B 16.5 etc
Face to Face: ANSI B 16.10, API 609
Pressure test: API 598-82
Size: 2″-120″
Application
Three eccentric configuration, hermetic capability reliably,which ensure disc never touch sealing seat when it start, solve the problem of hermetical seat burden unequally,prolong service life, and ensure reliable hermetic capability with advantage of high temperature resistant, wearable,antisepsis etc.

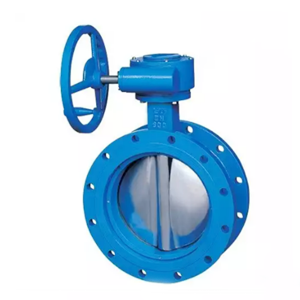

Concentric Double Flanged (U type) Butterfly Valve
Structre type: Double concentric flanged (U type) butterfly valve
Design standard: BS 5155
Flange connection dimension: DIN 2501 PN10
Face to Face: DIN3202 K1
Structure length: BS 5155, API 609, EN 558
Pressure test: API 598
Application
This kind of butterfly valve is widely utilized in foodstuff, pharmacy, chemical industry and industrial environmental protection, water treatment, high building, water supply and drainage tubing line open/close or adjusting medium.
